Description

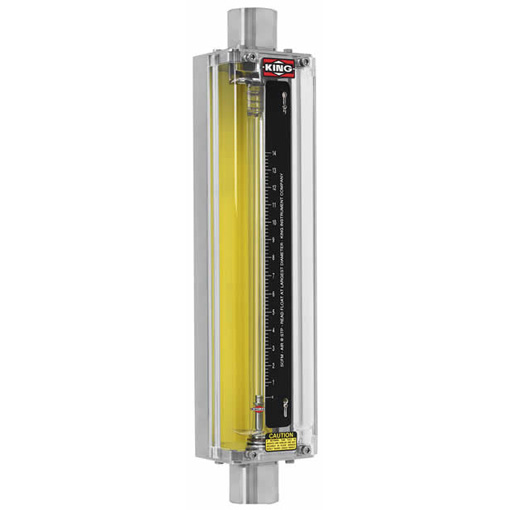

Variable Area (rotameter) flow meters in 35 flow ranges in 6 tube sizes with full horizontal and vertical connection options make these flowmeters the most versatile removable glass tube meters available. The powder-coated 304 stainless steel case and precision molded polycarbonate shield will tolerate most corrosive applications.
PERFORMANCE
| Capacities | Water | 0.23 to 85 GPM |
| Air | 1.15 to 285 SCFM | |
| Scale | Size 3 to 6 | 250 mm (10”) |
| Size 8 to 9 | 200 mm (8”) | |
| direct reading, detachable scales | ||
| Accuracy | ± 2% of full scale flow | |
| Turndown | 10:1 | |
| Repeatability | 0.5% | |
| Maximum Temperature | 316L SS fittings | 200° F (93° C) |
| PVDF fittings | 200° F (93° C) | |
| Maximum Pressure | 316L SS fittings | 300 psig, size 3 & 4 |
| 316L SS fittings | 250 psig, size 5 & 6 | |
| 316L SS fittings | 75 psig, size 8 & 9 | |
| PVDF fittings | 150 psig, size 3 & 4 | |
| PVDF fittings | 150 psig, size 5 & 6 | |
| PVDF fittings | 75 psig, size 8 & 9 | |
| Ambient Temperature | 33° F to 125° F (1° C to 52° C) | |
